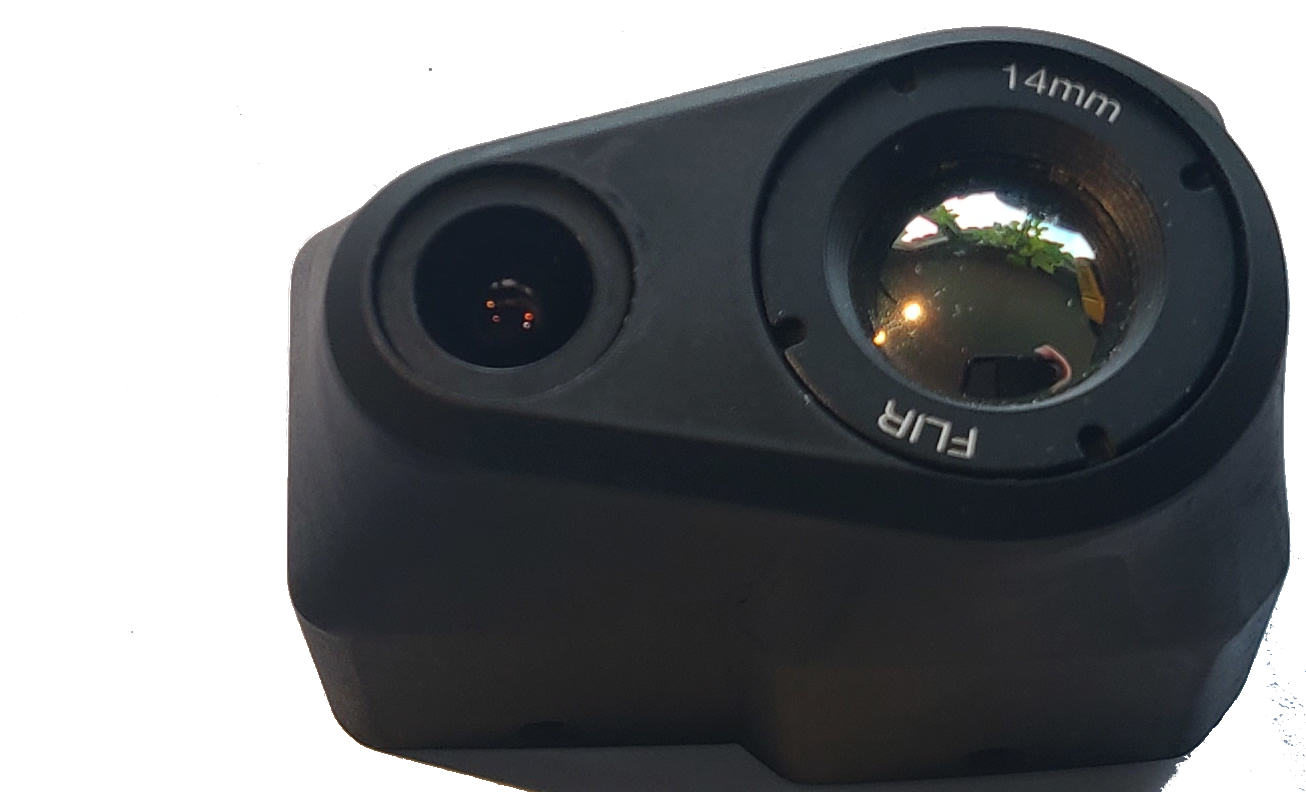

FalconDuo: Tiny Visible + Thermal Dual Camera

FalconDuo

Low Cost Dual Camera Solution
16MP + 256×192 LWIR Thermal Camera
Ultra Compact
Removable M12 lens (visible camera)

FalconDuo Tiny Dual Visible+Thermal Camera Datasheet

As configured with PicoNV encoder:
· 1080p or 720p output for visible camera
· High quality large aperture M12 lens
· 16MP Video with windowed zoom
· 16MP snapshot mode (soon)

1080p or 720p output for visible camera
· High quality large aperture M12 lens
· 16MP Video with windowed zoom
· 16MP snapshot mode (soon)

Introducing FalconDuo: A High Capability, Low Cost Tiny Dual Camera Solution for Mini UAVs!
FalconDuo is a low cost, rapid integration visible + thermal
camera which can be integrated into very small vehicles.
Unleash the power of dual vision with FalconDuo, the compact
dual camera redefining aerial surveillance. Measuring just
45x27x13mm, this dual-camera system features a 16-
megapixel visible camera delivering real-time HD video (with
windowed controllable zoom in some configurations) alongside
a tiny cutting-edge and high quality 256×192 long-wave
infrared thermal imaging camera. FalconDuo ensures
unparalleled visibility for the size and price point.
FalconDuo, unlocks a low-cost but high performance
visible+thermal imaging solution for the smallest UAVs.
The dual camera is plug and play with our low cost PicoNV
video encoder for simultaneous dual-camera display, offering
versatile options like configurable dual side-by-side
simultaneous video and picture-in-picture modes. FalconDuo
enables a new era of dual video in low cost vehicles.
Extend your operations with our optional Picoradio datalink
series for long-range video transmission and command and
control capabilities.
This imaging solution enables a new generation of inexpensive
but capable mini UAVs. FalconDuo makes it an easy choice
when consdering adding dual visible+ thermal imaging to your
vehicle, minimizing cost, size, and weight impact
Easy to use Software
With PicoNV integration, preconfigured software will broadcast
RTP video to QGroundControl and Mission Planner, with easy
browser interface configurability.
More features and ready to go configurations are on the way.
User code can plug into our configuration interface, user code
protection is also possible, custom support, processing and
display options as well as interfaces are available. If you have
custom requirements, get in touch, we are here to help.
